OUR PRODUCTS

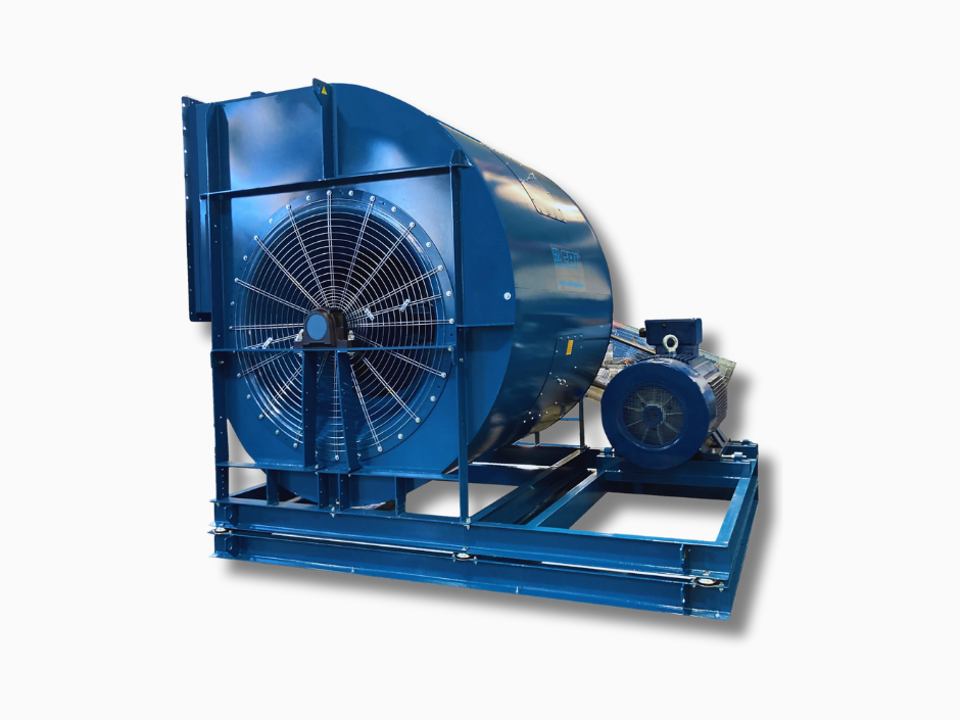

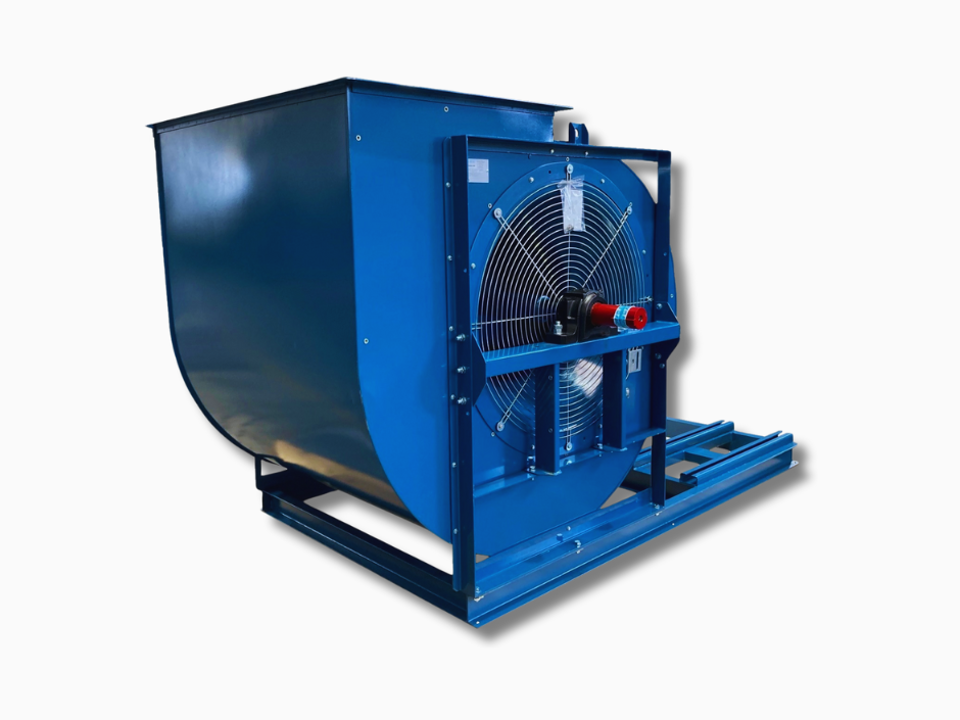

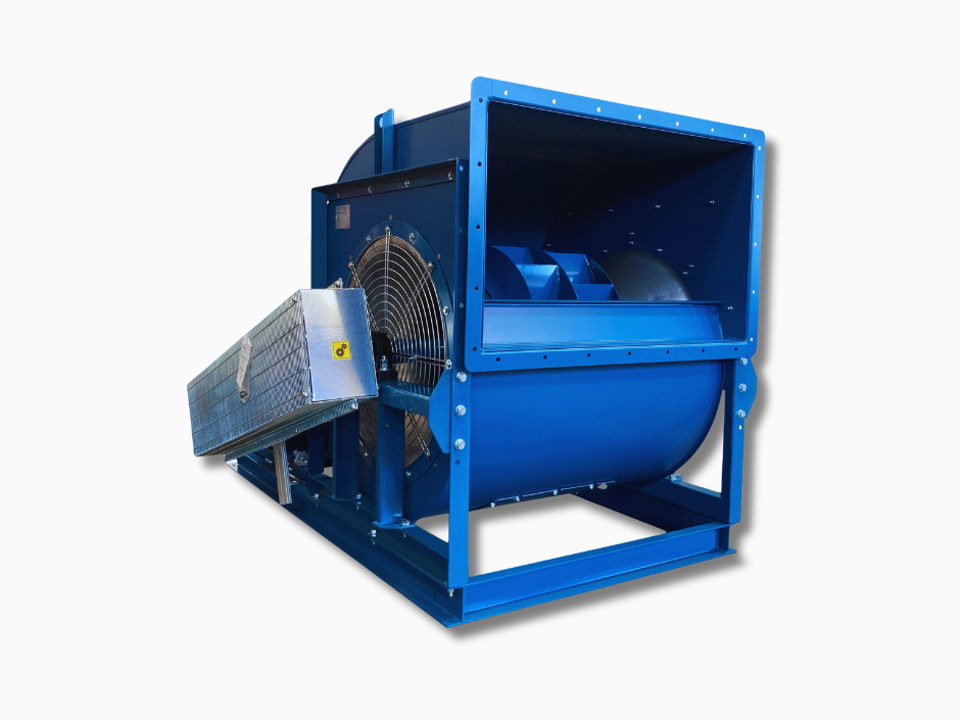

ChT series

Versatility, robustness, and reliability are the fundamental characteristics that set these fans apart, making them suitable for a wide range of industrial applications, both standard and special.

Our ChT series effectively adapts to various needs, ensuring excellent and long-lasting performance.



Technical specifications

  • Pressure (max): 5.000 Pa
  • Flowrate (max): 750.000 m³/h
  • Impeller size: Available in 19 sizes with impeller diameters ranging from 411 mm to 2,434 mm
  • Blades: backward inclined airfoil or flat
  • Temperature: up to 300°C
  • Casing: sheet steel of a suitable thickness and is treated with RAL 5009 colour paint

Special execution:

  • Stainless Steel AISI
  • ATEX compliant
  • Polypropilene
  • Gastight Execution
  • Insulated execution
background

Impeller model

01

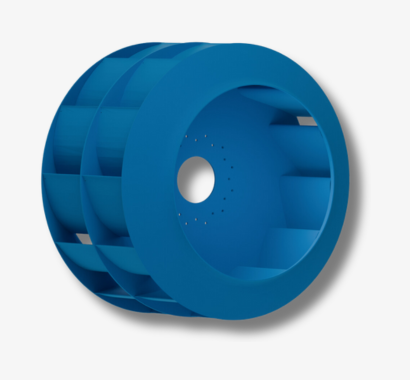

ChAT Impeller

The ChAT impeller has 12 +12 alternate blades welded to two aerodynamic profile blades and to a central disk.



This configuration allows a performance of up to 90% to be reached with a consequent very low noise level.



This type of impeller is ideal for fluids without dust and with a relative humidity rate of less than 80%

02

ChBT Impeller

The ChBT impeller has 12 +12 alternate blades welded to two aerodynamic profile blades and to a central disk.



This configuration allows a performance of up to 86%.



This type of impeller is ideal for fluids containing fine, dry and not abrasive powders or those with high moisture rates.

01
02
1 / 2

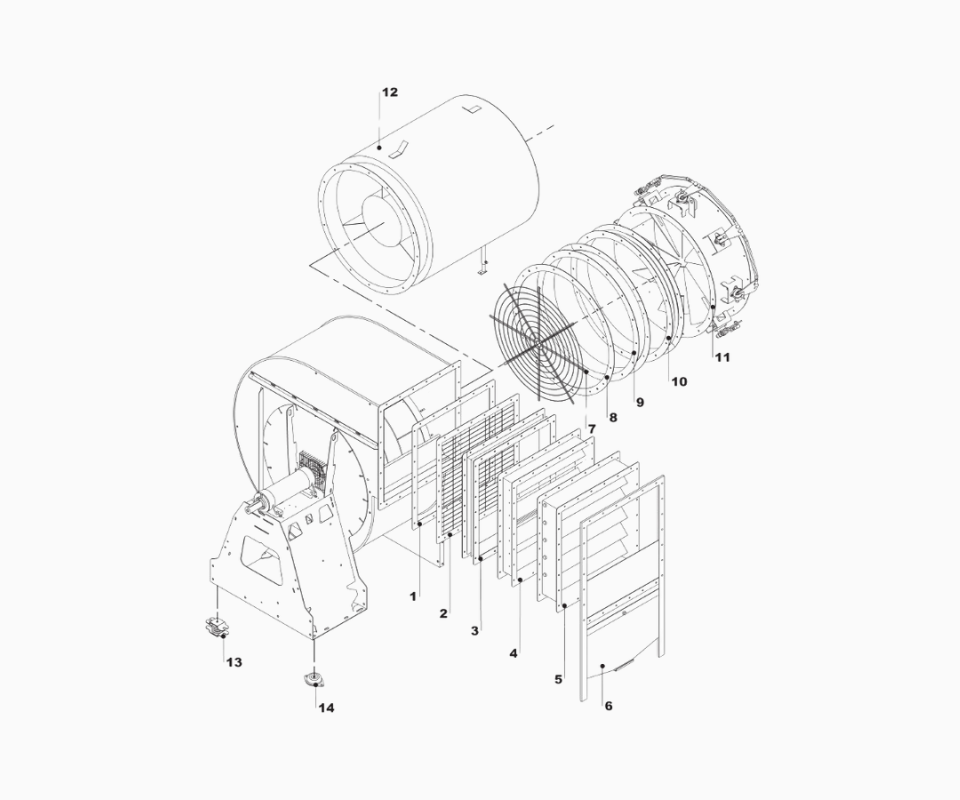

Accessories

  1. Outlet counter flange
  2. Outlet anti-vibration joint
  3. Counterpoised fin gate valve
  4. Transmission unit guard
  5. Belt transmission
  6. Inlet protection mesh
  7. Inlet flow rate regulators
  8. Inspection door (*)
  9. Electric motor
  10. Basement
  11. Shock absorbers
  12. Discharge cap (*)

(*) always included

Custom tailor made


We are able to study and provide customized solutions for all specific needs.



Contact us for more information, you will speak directly with one of our experts.
