Axial fan blade angle

Blade angle is one of the most critical parameters governing axial fan performance. Its correct definition and selection directly affects flow rate, static pressure, power absorption, noise emission, aerodynamic stability, and mechanical reliability.

This guide provides a technical overview of blade angle in industrial axial fans, its effects on performance, the causes of deviation during service, and the diagnostic and corrective approaches adopted by CBI Group.

On this page, you will learn more about:

What is blade angle in an axial fan?
Why blade angle is so important: what really changes
Blade angle in operation: engineering it right
Why choose CBI

What is blade angle in an axial fan?

In an axial fan, the blade angle is defined as the inclination of the blade chord relative to the plane of rotation of the impeller. It governs the energy transfer between the rotating impeller and the fluid, and therefore determines the fan's aerodynamic operating point. It is not merely a geometric dimension, but a parameter with direct thermodynamic significance: for a given rotational speed and impeller diameter, the blade angle defines the work input per unit mass of air.

Industrial fan blades are generally shaped as three-dimensional aerodynamic profiles.Therefore, the blade geometry cannot be represented by a single angle only: at least two characteristic blade angles should be considered.

The inlet blade angle defined at the leading edge, is related to the incidence of the incoming flow onto the blade.
The outlet blade angle, defined at the trailing edge, influences the direction of the relative flow leaving the blade and is therefore directly involved in the outlet velocity triangle and in the fan pressure development.

Difference between design angle and operating angle

The design angle is the blade angle defined during the design phase, set to optimise the aerodynamic performance of the impeller for a given operating condition. It represents a geometric property of the blade and does not necessarily coincide with the best efficiency point (BEP).

The operating angle is the effective angle of incidence between the blade and the relative flow as seen from the blade reference frame. It is determined by the velocity triangle at the leading edge, which depends on the actual flow velocity and the blade tip speed (rotational speed and radius).

When the operating angle deviates from the design angle, incidence losses increase, potentially leading to flow separation, efficiency losses, and aerodynamic instability.

Why blade angle is so important: what really changes

Flow rate and pressure

For a given rotational speed and impeller diameter, increasing the blade angle raises both the theoretical pressure rise and the volume flow rate, up to the stall limit.
CBI's axial fan series cover a broad performance range precisely by varying impeller geometry alongside blade angle selection:

GAV and GAX Series: up to 300,000 m³/h, 1,000 Pa
EFA Series: up to 480,000 m³/h, 1,800 Pa
AXL Series: designed for high-pressure and high-flow applications (up to 830,000 m³/h, 5,000 Pa).

Energy efficiency and noise

Operation away from the best efficiency point results in increased specific power consumption. Partial or rotating stall produces broadband aerodynamic noise and cyclic mechanical loading on the fan. In every application, sustained operation in stall conditions leads to accelerated fatigue.

Application criteria

The appropriate blade angle depends on the nature of the system resistance,as well as on the fan design and blade geometry. These factors together determine the aerodynamic behaviour of the impeller and its ability to match the required operating point.

However, selecting the right fan configuration for a given application is not a straightforward process. System resistance is only one of the variables involved: operating temperature, fluid type, application requirements, space constraints, material specifications, and the need for surface treatments must all be taken into account. Each application should therefore be evaluated on a case-by-case basis, as the combination of these variables can significantly influence the final selection.

Blade angle in operation: engineering it right

In real industrial environments, the operating conditions of a fan are rarely simple or static. System resistance, process requirements, fluid characteristics, temperature, space constraints, and material specifications all interact to define the actual operating point - and it is the blade angle that must reconcile all these variables into an efficient, stable, and durable machine.

This is where engineering depth makes the difference. A blade angle that is correctly defined from the outset, on the basis of a thorough analysis of the application, significantly reduces the risk of performance drift, mechanical stress, and premature wear over the fan's service life. CBI's approach to fan design - built on decades of application knowledge across industrial, infrastructure, and process environments - ensures that blade geometry is selected not just for nominal performance, but for long-term reliability under real operating conditions.

Why choose CBI

CBI is a high-value technical partner for industry, supporting customers throughout the entire fan lifecycle.

Engineering & Customisation: fully custom-tailored design using CFD, FEM, and automated error-free processes;
Reliability & Longevity: fans designed for harsh environments, with units installed in the 1980s still running today;
Spares & Service: 360° support including reverse engineering via 3D scanning to replicate or improve components of CBI or third-party fans;
Maintenance excellence: global on-site intervention and subscription-based predictive maintenance contracts to ensure zero disruption;
Compliance: certified performance according to ISO 9001 / ISO 14001, ATEX (only on request), and fire safety standards like EN 12101-3.

Everything is handled in-house to ensure faster interventions and the highest quality standards globally.

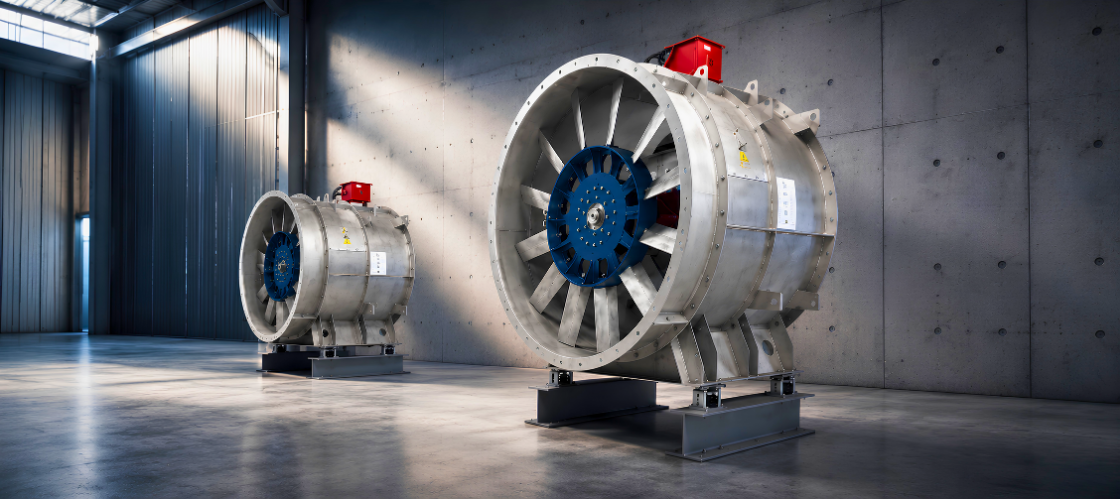

What is the Blade Angle of an Axial Fan Blade?
